Industrial Thermocouple Extension & Compensating Cables
Industrial thermocouple extension and compensating cables connect temperature sensors to transmitters, PLCs, DCS systems, data loggers, and other temperature measurement instruments. They transmit low-level thermoelectric signals while maintaining the conductor characteristics required for the specified thermocouple type.
Available configurations include Type K, J, E, T, N, R, and S applications, subject to the required cable designation and conductor specification. Cable selection depends on thermocouple type, thermoelectric tolerance, ambient temperature, insulation material, shielding, mechanical protection, and installation conditions.
Extension cables use conductors with nominal thermoelectric characteristics corresponding to the specified thermocouple. Compensating cables use alternative alloy combinations designed to provide the required thermoelectric characteristics within a defined temperature range.
Correct cable selection helps prevent additional measurement errors caused by incompatible conductor materials, unsuitable connections, or operation outside the specified temperature limits.
-
Individually And Overall Shielded Instrumentation CableFor the most hostile electromagnetic environments, our Individually and Overall Shielded Instrumentation Cable (DJYPVP) offers the industry's highest level of protection. In facilities like...
-

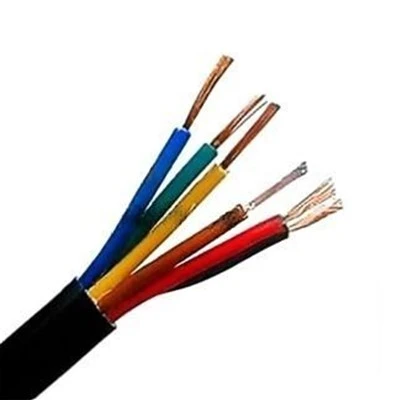

Individually Screened Computer Data CableWhen multiple signal types—such as 4-20mA loops and 220V switching signals—must coexist in the same cable, the Individually Screened Computer Data Cable (DIYPV) is the only professional choice.
-
Overall Shielded Computer Signaling CableIn the precise world of power plants and petrochemical automation, signals are often measured in millivolts. Our Overall Shielded Computer Signaling Cable (DJYVP) is designed to protect these weak...
-
Individually and Overall Shielded Control CableDJYPVP
Conductor: Copper
Insulation: Polyethylene (PE)
Pair Shielding: Aluminum tape or copper braid
Overall Shielding: Copper wire braid (85% coverage) -
Flexible Pair-Shielded Control CableDJYPVR
Conductor: Class 6 ultra fine copper wire
Insulation: Polyethylene (PE)
Shielding: Aluminum plastic tape + tin plated copper drain wire -
Pair Shielded Instrumentation CableDIYPV
Conductor: Copper
Insulation: Polyethylene (PE)
Shielding: Individual pair shielding (aluminum tape or copper braid)
Sheath: PVC -
Flexible Shielded Computer CableDJYVPR
Conductor: Class 6 soft copper (≤0.15mm single wire)
Insulation: Polyethylene (PE)
Shielding: Tin plated copper wire braid
Sheath: Extra soft PVC -
Shielded Computer CableDJYVP
Conductor: Class 5 annealed soft copper
Insulation: Polyethylene (PE)
Shielding: Copper wire braid (80% density)
Sheath: PVC
Product types and applications
Different thermocouple types require compatible extension or compensating cables. The following table provides common designations and conductor materials for initial selection. Final specifications should be confirmed against the applicable standard and purchase requirements.
|
Cable type |
Conductor materials |
Typical applications |
|
KX |
Nickel-chromium / nickel-aluminium |
Industrial furnaces, heat treatment equipment, kilns, and process temperature monitoring |
|
NX |
Nickel-chromium-silicon / nickel-silicon-magnesium |
High-temperature process monitoring and industrial furnace instrumentation |
|
JX |
Iron / copper-nickel (Constantan) |
Industrial ovens, process equipment, and general temperature measurement |
|
EX |
Nickel-chromium / copper-nickel (Constantan) |
Laboratory equipment, chemical processing, and industrial temperature monitoring |
|
TX |
Copper / copper-nickel (Constantan) |
Refrigeration systems, environmental monitoring, and low-temperature measurement |
|
Type R / S compensating cable |
Copper / copper-nickel-based compensating alloys, depending on the specified designation |
Precious-metal thermocouple connections in metallurgy, furnaces, and high-temperature process control |
Note: Alloy designations, polarity, conductor composition, and permitted temperature ranges must be verified for the selected cable type. Type R and Type S compensating cable configurations should be specified separately according to the applicable standard and project requirements.
Technical specifications
The following specifications should be confirmed for each cable construction before quotation or production.
|
Parameter |
Specification or available options |
|
Thermocouple types |
K, J, E, T, N, R, S, subject to configuration |
|
Cable designation |
KX, NX, JX, EX, TX, or specified compensating cable type |
|
Conductor material |
Thermocouple-grade alloys or specified compensating alloys |
|
Conductor construction |
Solid or stranded |
|
Conductor size |
20 AWG (approximately 0.81 mm), 24 AWG (approximately 0.51 mm), or custom sizes |
|
Thermoelectric tolerance |
To be specified according to cable type and applicable standard |
|
Insulation material |
PVC, PTFE, FEP, PFA, silicone rubber, or fiberglass-based construction |
|
Shielding |
Aluminum-polyester foil with drain wire or copper wire braid |
|
Mechanical protection |
Galvanized steel or stainless steel armor, subject to design |
|
Dielectric strength |
Original reference value: greater than 1.0 kV for 1 minute; confirm against the actual product specification |
|
Insulation resistance |
Original reference value: at least 100 MΩ·km at 20°C; confirm against the actual product specification |
|
Cable identification |
Color coding and printed markings according to the specified standard |
|
Reel length |
100 m, 500 m, 1,000 m, or custom lengths, subject to confirmation |
Thermoelectric tolerance and insulation temperature rating are separate specifications. The permitted temperature range of a finished cable depends on the conductor system, insulation, sheath, and other construction materials.
Do not apply a single temperature tolerance or maximum operating temperature to all cable types. Confirm the required tolerance, reference temperature range, and test method for each configuration.
Materials and cable construction
Cable construction should match the electrical, thermal, chemical, and mechanical conditions of the installation.
Conductor alloys
Thermocouple-grade or compensating-alloy conductors are selected according to the required thermoelectric characteristics of the specified thermocouple type. Conductor composition, polarity, dimensions, and tolerance requirements should be defined in the purchase specification.
Primary insulation
PVC: An option for general industrial installations where the operating temperature and environmental exposure remain within the specified limits.
PTFE / FEP / PFA: Fluoropolymer insulation options for applications requiring resistance to specified chemicals, moisture, and operating temperatures.
Fiberglass: Braided or impregnated fiberglass constructions for applications requiring higher-temperature insulation. The allowable temperature depends on the complete insulation system and construction.
Silicone rubber: A flexible insulation option for cable routing around equipment and installations with defined temperature and flexibility requirements.
Shielding
Aluminum-polyester foil with a drain wire or copper wire braid can be specified to reduce electromagnetic interference from nearby power cables, variable frequency drives, and other electrical equipment. Shielding performance depends on cable construction, grounding, and installation practices.
Mechanical protection
Galvanized steel or stainless steel armor can be specified where additional protection against abrasion or mechanical damage is required. Armor selection should account for the installation environment, cable flexibility, and routing requirements.
Standards and quality control
Applicable standards and inspection requirements should be defined before production. Compliance claims must correspond to the actual cable construction, test results, and supporting documentation.
Relevant standards
IEC 60584-3:2021: Covers manufacturing tolerances and identification systems for thermocouple extension and compensating cables, excluding mineral-insulated extension and compensating cables.
ASTM E230/E230M: Provides temperature-electromotive force reference data and specified tolerances for standardized thermocouples, extension wires, and compensating extension wires within the applicable ranges.
The applicable standard, edition, tolerance class, and color-coding system should be stated in the order specification. These standards address different aspects of thermocouple performance and should not be treated as interchangeable.
Quality verification
Thermoelectric testing: Verify conductor-pair thermoelectric output or deviation against the specified reference and acceptance criteria.
Dimensional inspection: Check conductor dimensions and insulation thickness against the approved drawing or product specification.
Electrical testing: Perform applicable insulation resistance and dielectric strength tests. Spark testing may be used where appropriate to the insulation system and manufacturing process.
Batch traceability: Maintain production identification and inspection records according to the agreed quality requirements.
Documentation: Test reports, material certificates, and other quality documents can be specified according to the product and purchase order.
ISO 9001 certification, RoHS and REACH conformity, and individual reel test reports should be confirmed through valid certificates, declarations, or inspection records before being claimed for a specific product.
Custom cable configurations can be specified for temperature sensor manufacturers, instrumentation suppliers, system integrators, and industrial project contractors.
Conductor configuration: Solid or stranded conductors according to conductor size, flexibility, and installation requirements.
Cable identification: Color coding and printed markings according to the applicable ANSI, IEC, JIS, BS, or customer-specific requirements.
For a technical quotation, buyers should provide the thermocouple type, cable designation, conductor size, tolerance requirements, insulation material, shielding construction, operating temperature, applicable standard, and required quantity.
Insulation and sheath
Material selection based on operating temperature, chemical exposure, moisture, and mechanical conditions.
Shielding and armor
Foil shielding, copper braid, steel armor, or other agreed constructions according to the installation requirements.
Packaging
Reel lengths of 100 m, 500 m, or 1,000 m, subject to confirmation. Custom cut lengths, reel materials, labels, and barcode identification can be specified for OEM and bulk orders.
Supply arrangements can be tailored to OEM production schedules, instrumentation projects, and industrial maintenance requirements.
Product availability: Standard cable types and conductor sizes are subject to stock confirmation. Custom alloy combinations and cable constructions require technical review before production.
Production lead time: Delivery schedules depend on conductor material availability, cable construction, order quantity, inspection requirements, and packaging specifications. Confirm the lead time before order placement.
Export packaging: Reel packaging, moisture protection, labels, and shipping arrangements can be specified according to the destination, transport method, and handling requirements.
Order documentation: Product specifications, reel identification, inspection records, and agreed compliance documents can be provided according to the purchase order and confirmed supplier capabilities.

Frequently asked questions

Request a quote
To receive a technical quotation for industrial thermocouple extension and compensating cables, provide the thermocouple type, cable designation, conductor size, required length, insulation material, shielding or armor requirements, thermoelectric tolerance, operating temperature, applicable standard, and order quantity.
For OEM and project orders, include color coding, reel packaging, labeling, and documentation requirements. These details help establish a clear technical specification and reduce the risk of incorrect cable selection.
